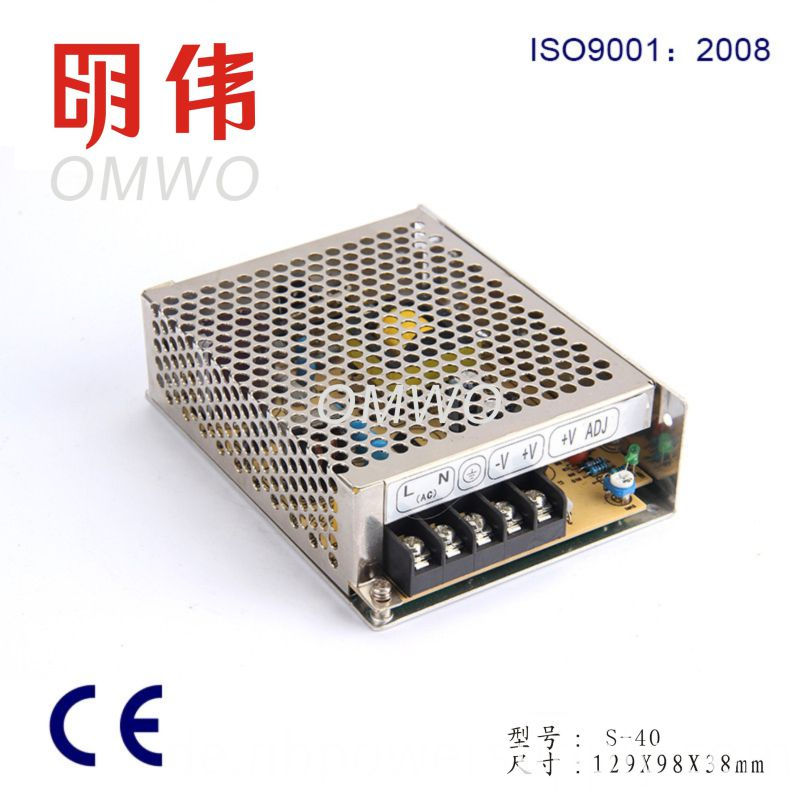

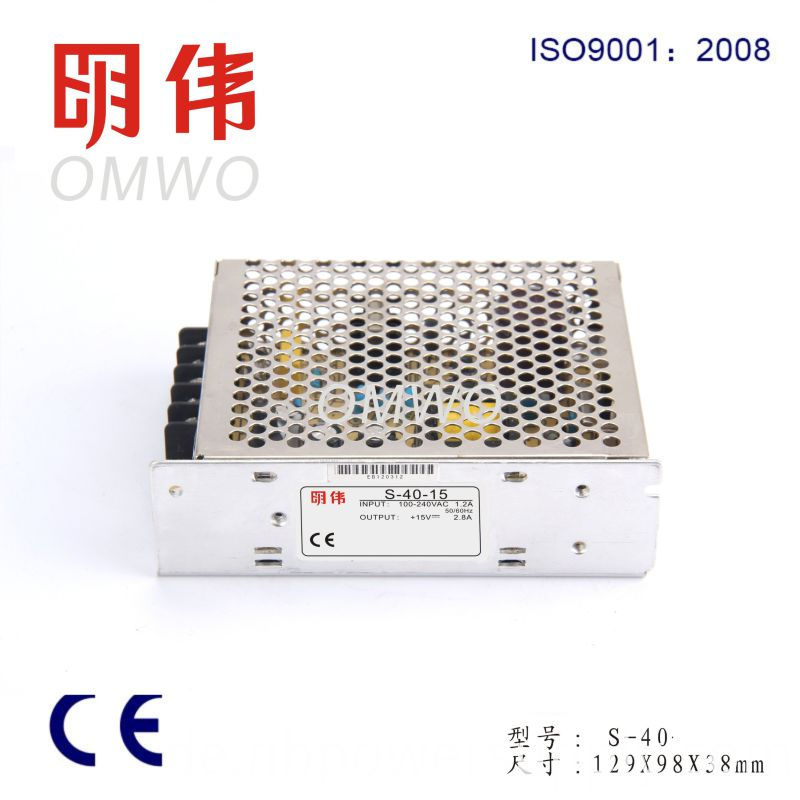

Home > Produkt-Liste > Single-Output-Schaltnetzteil > Hohe Qualität AC DC DC-Treiber-Netzteil mit 40W LED

Basisinformation

Modell:  S-40-12

Produktbeschreibung

Modell Nr .: S-40-12 Garantie:> 2 Jahre Eingangsspannung: 15V Startmodus: Selbsterregte Schaltnetzteil Stromversorgung System: Terminal Power Distribution Equipment Modulations-System: PFAW Marke: Omwo Spezifikation: 159 * 98 * 38mm HS Code: 8504401990 Ausgangstyp: Single-Ausgang Leistung: 1 - 50W Anschlussmodus: Serie Schaltnetzteil-Spannung Regelmodus: Frequenzmodulation Typ Energieübertragung: Zwei-Wege-Übertragung Zertifizierung: CE, UL, RoHS, ISO, CCC, CB, CSA-Marke : OMWO Herkunft: Zhejiang Spezifikationen \ nS-40-12 \ nAC DC S-40-12 \ nHohe Qualität / S-40-12 \ nUL CE EMC S-40-12 \ n2Jahre Garantie S-40-12 S-40- 12 MEAN WELL / * Universeller AC-Eingang / Voller Bereich * Schutz: Kurzschluss / Überlast / Überspannung * Kühlung durch freie Luftkonvektion * 100% Volllast-Einbrenntest * Feste Schaltfrequenz bei 75KHz * 2 Jahre Garantie

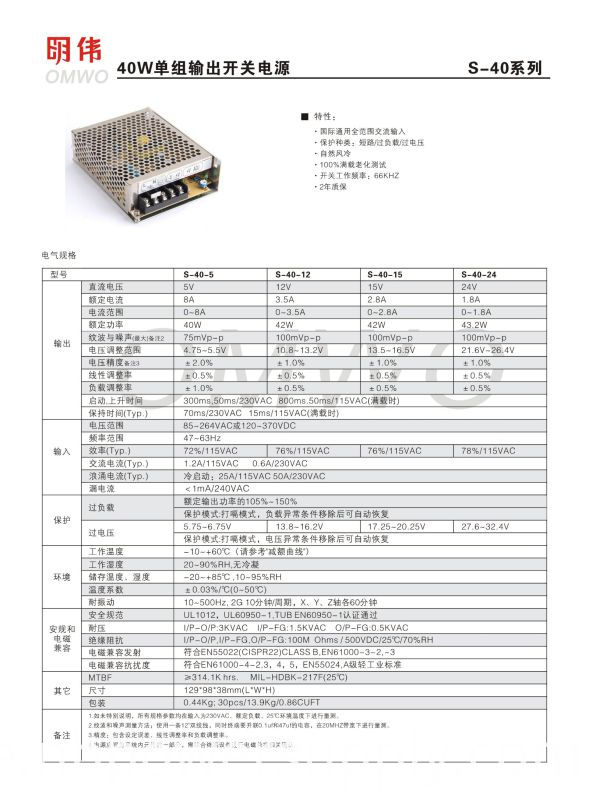

MODEL

S-40-5

S-40-12

S-40-15

S-40-24

OUTPUT

DC VOLTAGE

5V

12V

15V

24V

RATED CURRENT

8A

3.5A

2.8A

1.8A

CURRENT RANGE

0 ~ 8A

0 ~ 3.5A

0 ~ 2.8A

0 ~ 1.8A

RATED POWER

40W

42W

42W

43W

RIPPLE & NOISE (max.)  Note.2

75mVp-p

100mVp-p

100mVp-p

100mVp-p

VOLTAGE ADJ. RANGE

4.75 ~ 5.5V

10.8 ~ 13.2V

13.5 ~ 16.5V

21.6 ~ 26.4V

VOLTAGE TOLERANCE   Note.3

2.0%

1.0%

1.0%

1.0%

LINE REGULATION

0.5%

0.5%

0.5%

0.5%

LOAD REGULATION

1.0%

0.5%

0.5%

0.5%

SETUP, RISE TIME

300ms, 50ms/230VAC    800ms, 50ms/115VAC at full load

HOLD UP TIME (Typ.)

70ms/230VAC    15ms/115VAC at full load

INPUT

VOLTAGE RANGE

85 ~ 264VAC   120 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

72%/115VAC

76%/115VAC

76%/115VAC

78%/115VAC

AC CURRENT (Typ.)

1.2A/115VAC    0.6A/230VAC

INRUSH CURRENT (Typ.)

COLD START 25A/115VAC     50A/230VAC

LEAKAGE CURRENT

<1mA / 240VAC

PROTECTION

OVERLOAD

105 ~ 150% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

5.75 ~ 6.75V

13.8 ~ 16.2V

17.25 ~ 20.25

27.6 ~ 32.4V

Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.

-10 ~ +60 (Refer to output load derating curve)

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20 ~ +85 , 10 ~ 95% RH

TEMP. COEFFICIENT

0.03%/  (0 ~ 50 )

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for  60min. each along X, Y, Z axes

SAFETY &EMC(Note 4)

SAFETY STANDARDS

UL1012, UL60950-1, TUV EN60950-1 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

EMI CONDUCTION & RADIATION

Compliance to EN55022 (CISPR22) Class B

HARMONIC CURRENT

Compliance to EN61000-3-2,-3

EMS

IMMUNITY

Compliance to EN61000-4-2,3,4,5; ENV50204, EN55024, light industry level,  criteria A

OTHERS

MTBF

314.1K hrs min. MIL-HDBK-217F (25 )

DIMENSION

129*98*38mm (L*W*H)

PACKING

0.44Kg; 30pcs/13.9Kg/0.86CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25     of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets

EMC directives.

\ n High Quality AC DC Single Output 40W LED Driver Power SupplyHigh Quality AC DC Single Output 40W LED Driver Power SupplyHigh Quality AC DC Single Output 40W LED Driver Power SupplyHigh Quality AC DC Single Output 40W LED Driver Power SupplyHigh Quality AC DC Single Output 40W LED Driver Power SupplyHigh Quality AC DC Single Output 40W LED Driver Power Supply

Produktgruppe : Single-Output-Schaltnetzteil
