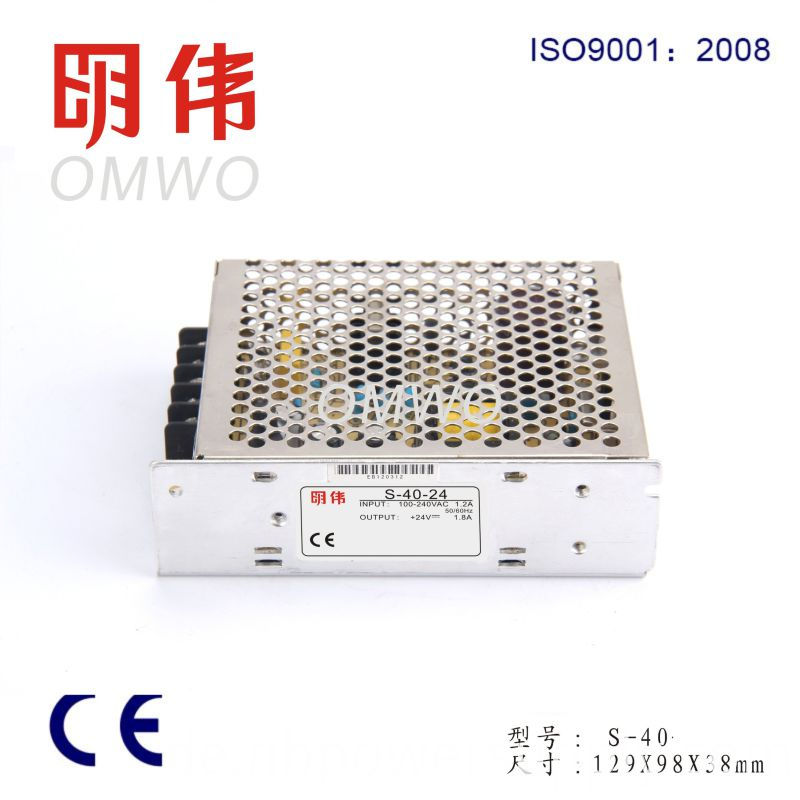

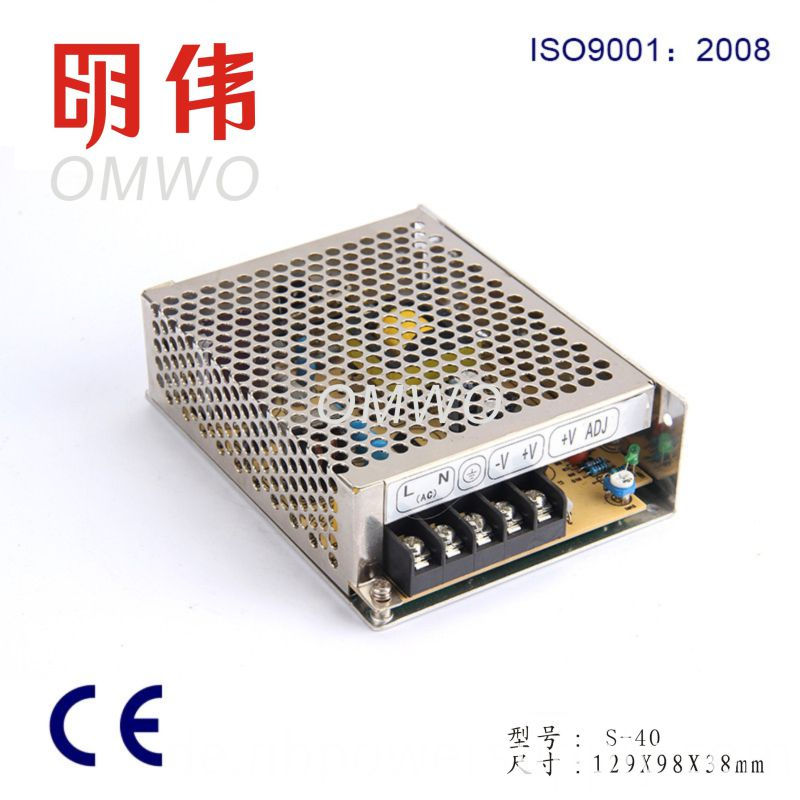

S-40-5 Neues Modell Schaltnetzteil
Basisinformation
Modell: S-40-5
Produktbeschreibung
Modell Nr .: S-40-5 Garantie:> 2 Jahre Eingangsspannung: 24V Startmodus: selbsterregtes Schaltnetzteil Stromversorgungssystem: Terminal-Stromverteilungsgerät Modulationssystem: PFAW Marke: Omwo Marke: OMWO Herkunft: Zhejiang Output Type : Single-Ausgangsleistung: 1 - 50W Anschlussmodus: Serie Schaltnetzteil-Spannung Regelmodus: Frequenzmodulation Typ Energieübertragung: Zwei-Wege-Übertragung Zertifizierung: CE, UL, RoHS, ISO, CCC, CB, CSA Größe: 159 * 98 * 38mm Spezifikation: 159 * 98 * 38mm HS Code: 8504401990 Produkt Beschreibung Einzelgerät Ausgang: Leistungen 40W \ nEingangsspannung 85 ~ 264VAC. Selected by switch \ nWenn die Befehle eingeben \ nAusgangsspannung: Die Spannung, die wir alle erzeugen können zwischen3V-150VDC 129 × 98 × 38mm
\ n
SPECIFICATIONS | ||||
OUTPUT | ||||
Model | S-40-5 | S-40-12 | S-40-15 | S-40-24 |
DC Voltage | 5V | 12V | 15V | 24V |
Rated Current | 8A | 3.5A | 2.8A | 1.8A |
Current Range | 0-8A | 0-3.5A | 0-2.8A | 0-1.8A |
Rated Power | 40W | 42W | 42W | 43W |
Ripple & Noise | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
Voltage Adj. Range | -5%, +10% | ±10% | ±10% | ±10% |
Voltage Tolerance | ±2% | ±1% | ±1% | ±1% |
Setup, Rise, Hold Up Time | 800ms,50ms,15ms/115VAC 300ms,50ms,60ms/230VAC at full load | |||
INPUT | ||||
Voltage Range | 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC | |||
AC Current | 1.2A/115V 0.6A/230V | |||
Efficiency | 72%/115VAC | 76%/115VAC | 76%/115VAC | 78%/115VAC |
Inrush Current | Cold start 30A/115VAC 60A/230VAC | |||
Leakage Current | <1mA/240VAC | |||
PROTECTION | ||||
Over Load | 110%~160% | |||
Protection type: Fold back current limiting, auto-recovery | ||||
Over Voltage | 115%~135% | |||
Protection type: hiccup mode, auto-recovery | ||||
ENVIRONMENT | ||||
Working Temp., Humidity | -10ºC~+60ºC; 20%~90%RH | |||
Storage Temp., Humidity | -20ºC~+85ºC; 10%~95%RH | |||
Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | |||
SAFETY | ||||
Withstand Voltage | I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | |||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | |||
STANDARD | ||||
Safety Standard | Design refer to UL1012, UL1950, TUVEN60950 | |||
EMC Standard | Design refer to EN55022, EN61000-3-2, -3, EN61000-4-2, 3, 4, 5, ENV50204, EN55024 | |||
OTHERS | ||||
Dimension | 129*98*38mm (L*W*H) | |||
Weight | 0.44Kg | |||
Packing | 30pcs/13.9Kg/0.86CUFT | |||
NOTE | ||||
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
Produktgruppe : Single-Output-Schaltnetzteil
